Event Camera Technical Documentation

1. Event Camera Overview

Event Camera is a new imaging device based on Dynamic Vision Sensor (DVS). Unlike traditional frame cameras, event cameras record scene information by asynchronously capturing pixel-level brightness changes (event streams). They have the characteristics of high temporal resolution , low latency , and high dynamic range , and are suitable for complex scenes such as high-speed motion and low light.

2. Core parameter description

The following parameters are based on the ShiMeta platform event camera:

parameterdescribe
sensorALPIX-Eiger
Resolution16321224(APS) 768608(EVS)
Temporal resolution≤1μs (microsecond response, support high-speed event capture)
Dynamic RangeAPS:>60dB; EVS:>100dB (adapt to mixed scenes of strong light and weak light)
Optical parameters1/2”，CAR 34
Pixel size1.89 *1.89 μ
Shutter ModeRolling shutter
Output InterfaceUSB3.0 (supports real-time event data transmission)
Power consumption≤5W (low power design, suitable for embedded applications)

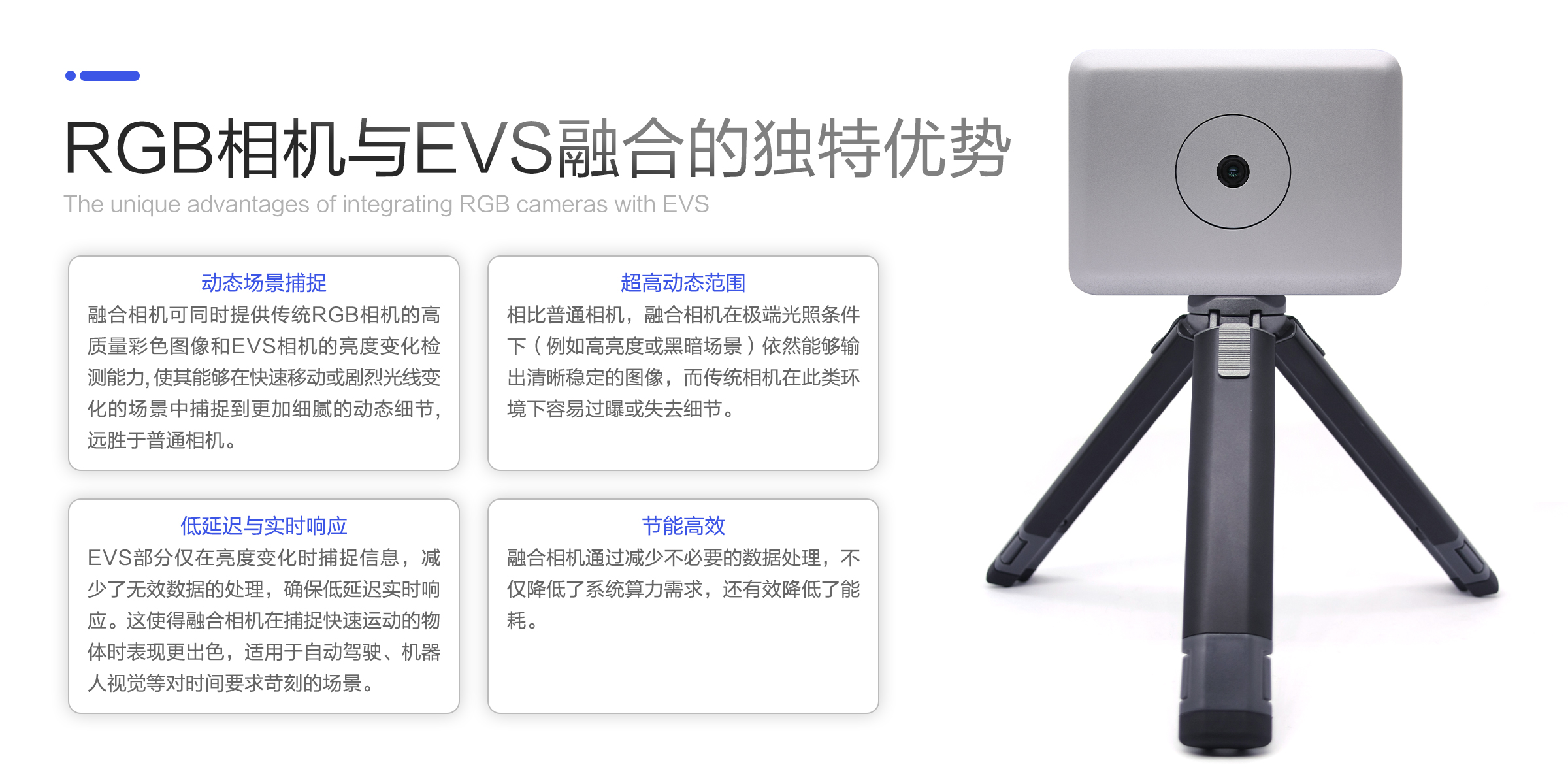

EVS
