AIBOX-1684X-416 Introduction

Chapter 1 Product Overview

1.1 Scope of Application

This product is a high-computing-power AI server. It integrates 13 SOPHON (Sophgo) AI processors BM1684X, and can be configured with up to 16GB of large memory and 64GB eMMC; it supports FP32/FP16/BF16/INT8 and intelligent analysis of up to 384 channels of 1080P high-definition video. It can host a rich set of algorithm applications and flexibly handle high-concurrency business scenarios such as public security, transportation, parks, production, and warehousing. It is widely applicable to multiple fields including intelligent security, smart transportation, smart parks, smart cities, smart industry, and smart energy.

1.2 Appearance and Interface Diagram

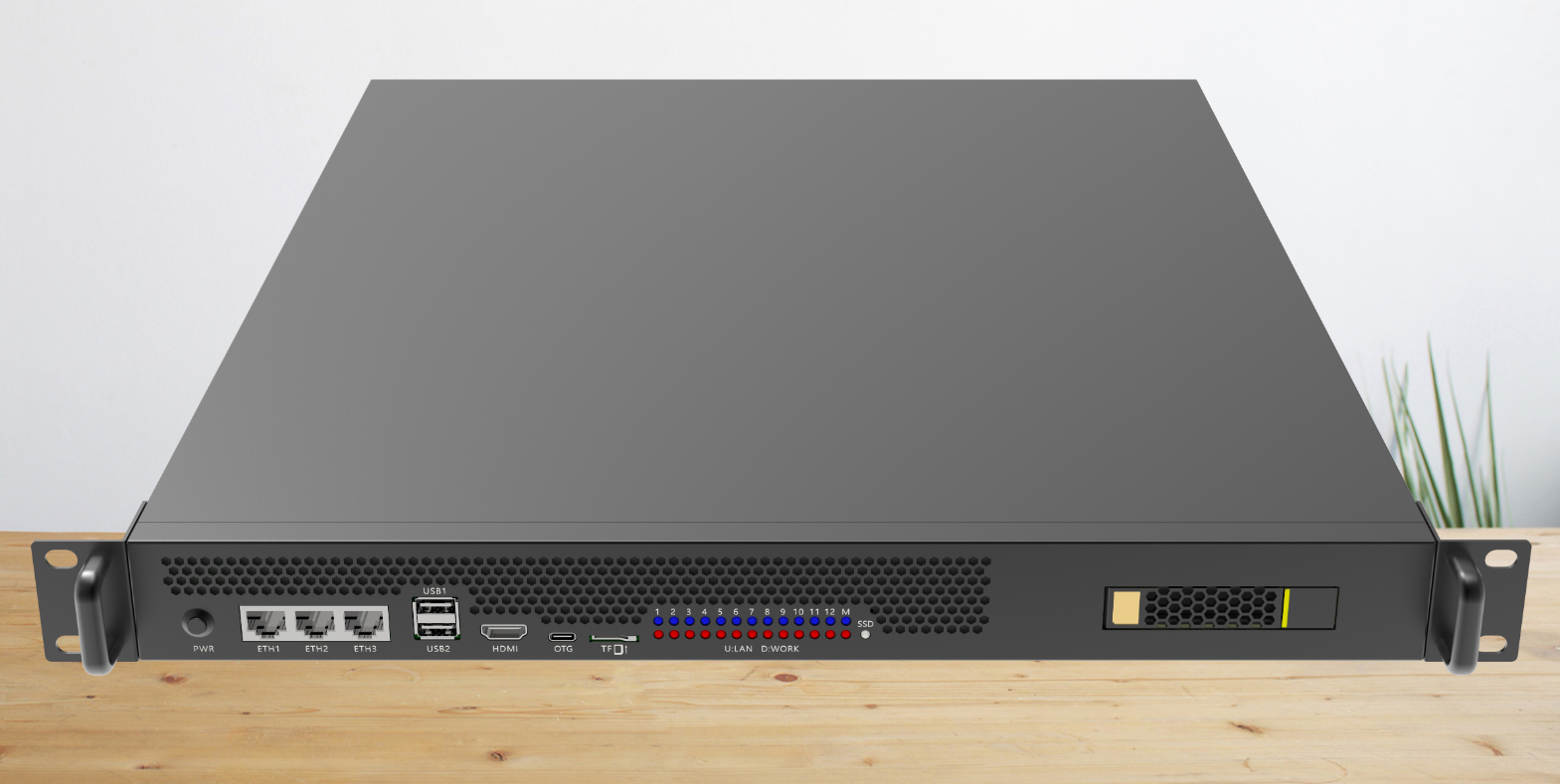

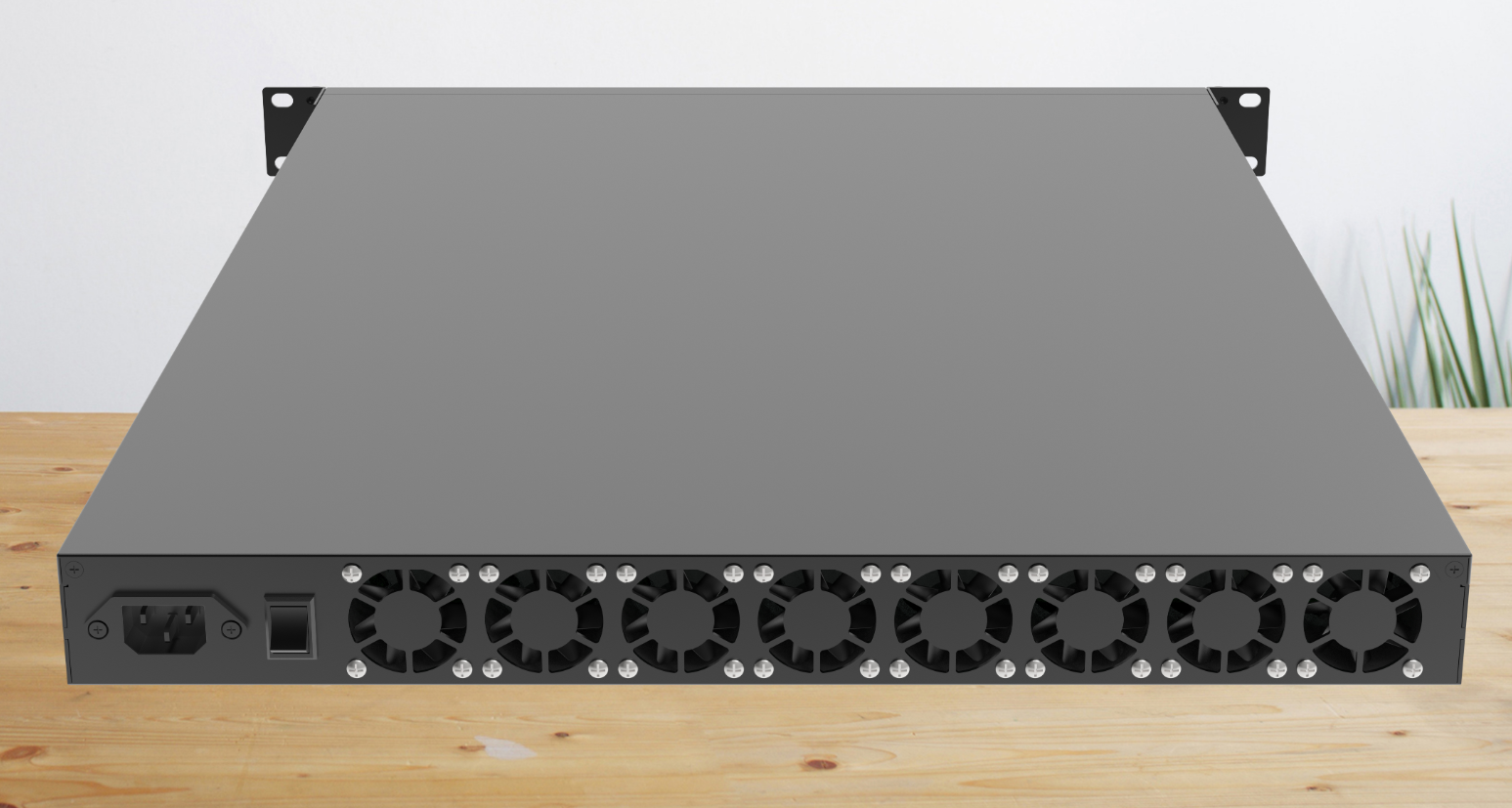

Appearance:

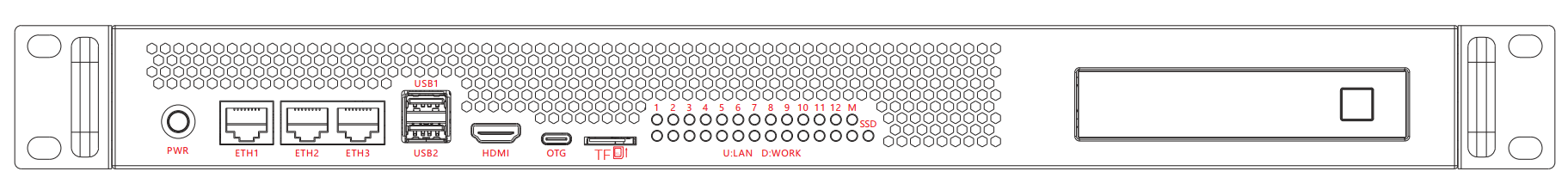

Interface diagram:

Photo Notice

The above photos were taken of boards from one of our production batches. As the product is under continuous maintenance, the actually shipped boards may not be completely identical to the photos.

Chapter 2 Product Specifications

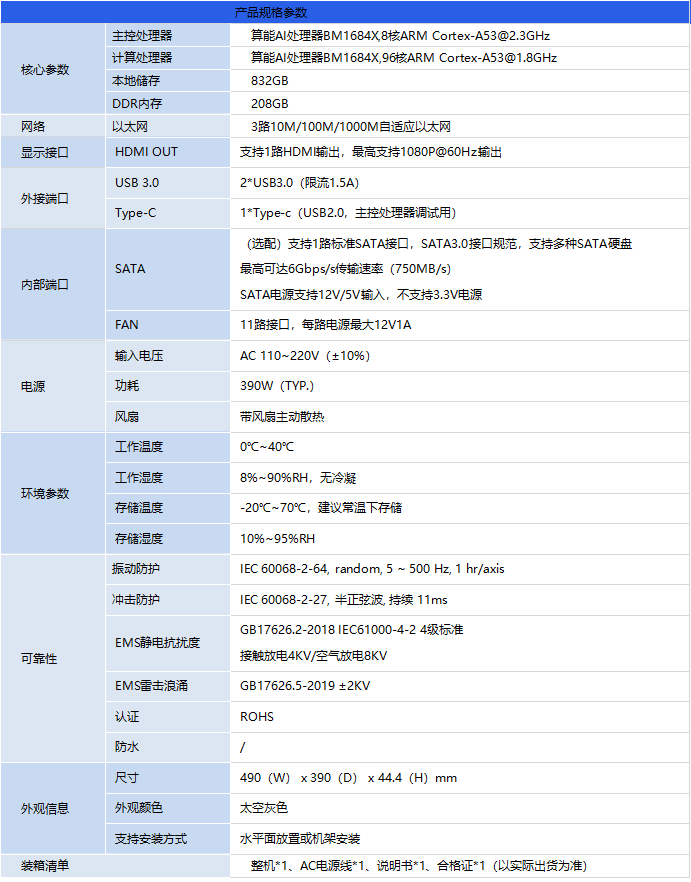

2.1 Specifications Table

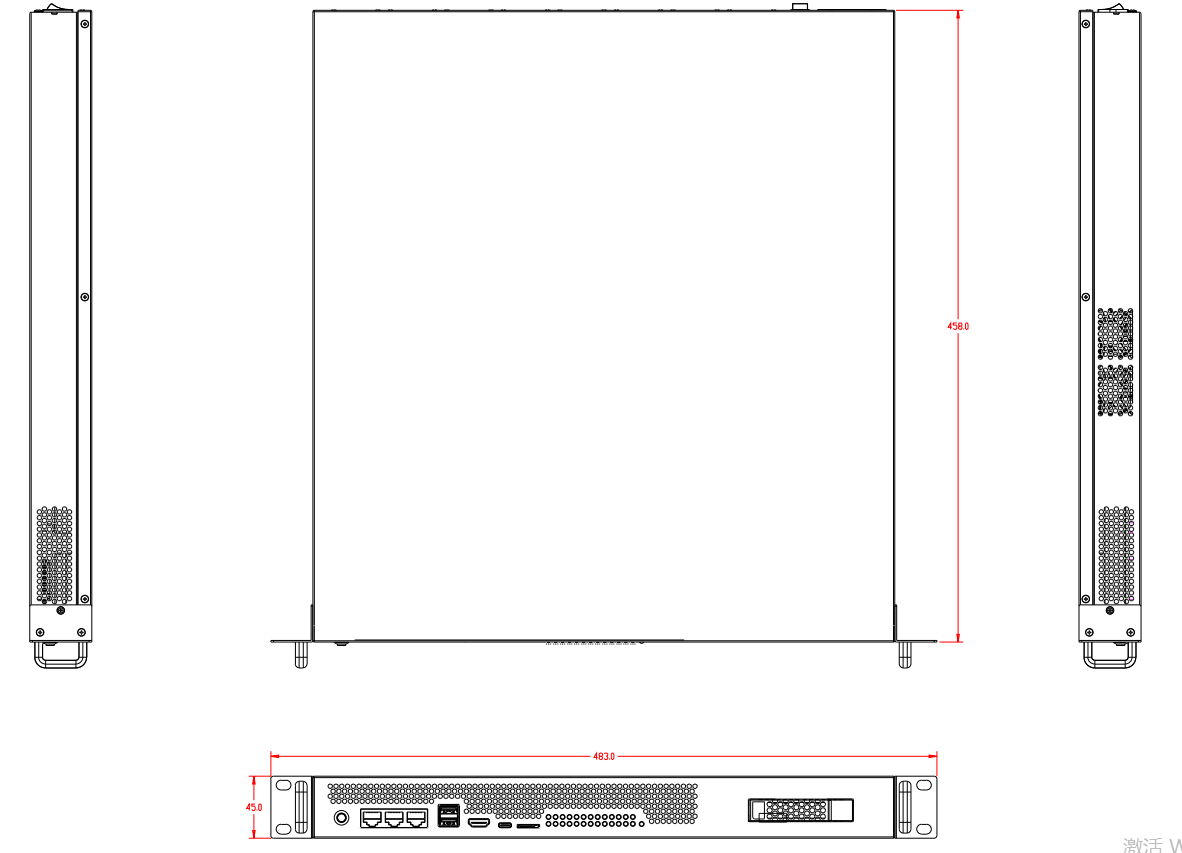

2.2 Product Dimensions (unit: MM)
