AIBOX-1684XB-32 Introduction

Chapter 1 Product Overview

1.1 Scope of Application

This product is a high-computing-power AI box. It integrates the SOPHON (Sophgo) AI processor BM1684X, and can be configured with 16GB of large memory and 64GB eMMC; it supports 32TOPS (INT8) peak computing power, 16TFLOPS (FP16/BF16) computing power, and 2TFLOPS (FP32) high-precision computing power; it supports 32-channel H.265/H.264 1080p@25fps video decoding. It can host a rich set of algorithm applications and flexibly handle high-concurrency business scenarios such as public security, transportation, parks, production, and warehousing. It is widely applicable to multiple fields including intelligent security, smart transportation, smart parks, smart retail, smart finance, smart cities, smart industry, and smart energy.

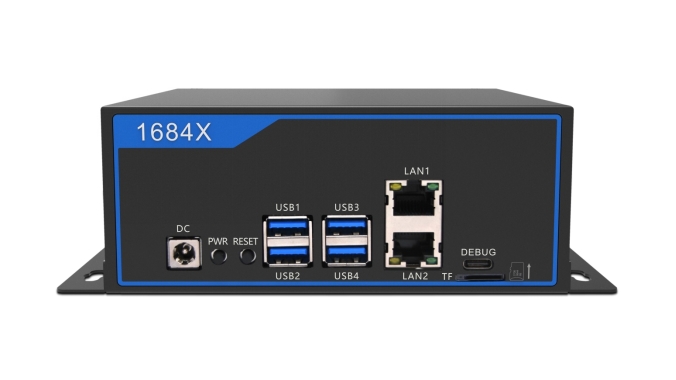

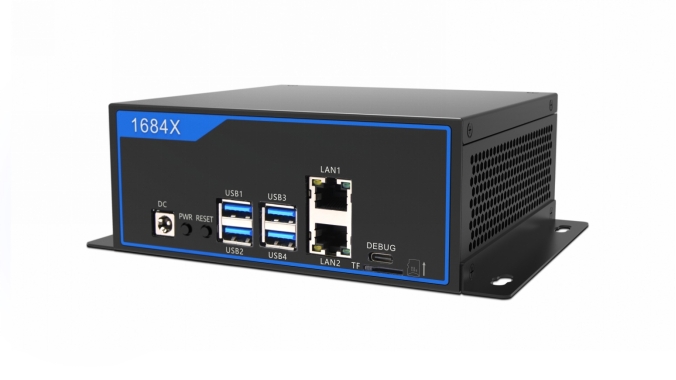

1.2 Appearance and Interface Diagram

Chapter 2 Product Specifications

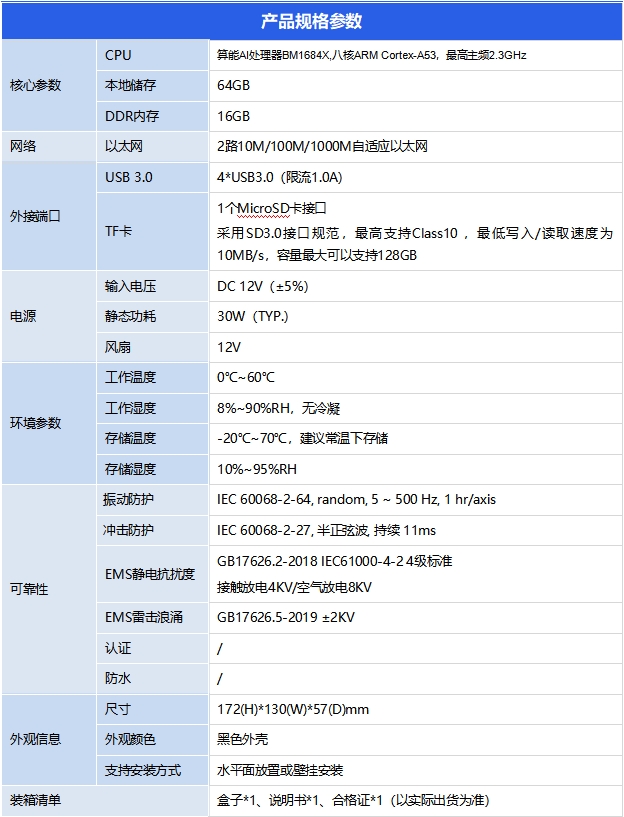

2.1 Specifications Table

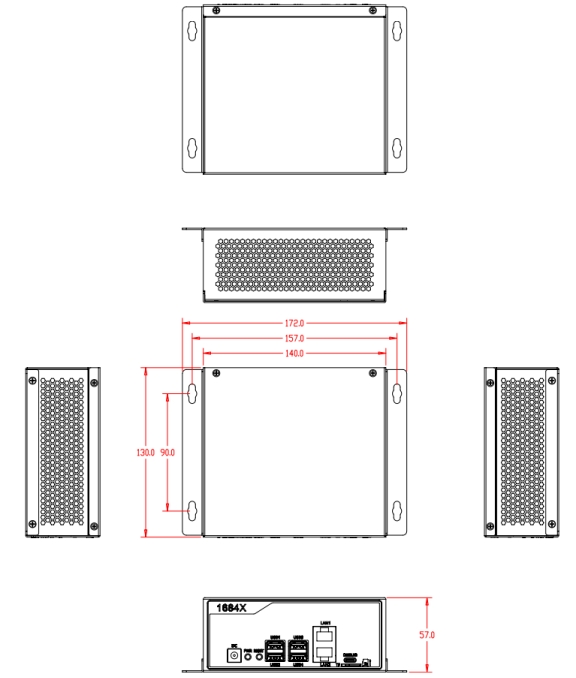

2.2 Product Dimensions (unit: MM)

Chapter 3 Please Read

Tips

You can download relevant materials such as the 03-Product Specification and 04-Hardware Documentation for more detailed information via Downloads.

PS: Software, tools, source code, and other resources used in the following documents can be found in Downloads.

This user manual, including but not limited to all information contained herein, is protected by copyright law. Without the permission of ShiMetaPi, no imitation, copying, excerpting, translation, distribution, or other use is permitted.

Disclaimer

For any third-party product names or content mentioned in this user manual, their ownership and intellectual property rights belong to their respective owners and are protected by current intellectual property laws and international treaties.
