GPIO Interface

1. GPIO Overview

GPIO stands for General Purpose I/O, which refers to universal input/output ports. Simply put, these are pins controllable by the MCU/CPU. These pins typically serve multiple functions, with the most fundamental being high/low level input detection and output. Some pins are also bound to on-chip peripherals of the microcontroller, serving as communication pins for interfaces like UART, I2C, SPI, or voltage detection functions.

2. GPIO Naming Convention

The ID of a Rockchip pin is composed of the controller (bank), port, and pin index.

• The number of controllers is consistent with the number of GPIO controllers.
• Ports are fixed as A, B, C, and D, with each port containing only 8 indexes (A=0, B=1, C=2, D=3).
• The index numbers are fixed as 0, 1, 2, 3, 4, 5, 6, 7.

The RK3568 is equipped with 5 GPIO controllers, each capable of managing 32 IO pins. When configured as GPIO functions, the port behavior is determined by the GPIO controller registers.

Tips

GPIO1_A4 indicates Controller Bank 1, Port A, and Index 4.
The pin number is calculated using the formula:
32 (pins per controller) × 1 (bank) + 0 (port offset within bank) × 8 (pins per port) + 4 (index) = 36.

3. Using the GPIO sysfs interface to control input/output operations

Command-line method

In Linux, the most common method for GPIO read/write operations is through the GPIO sysfs interface, which involves manipulating files such as export, unexport, gpio{N}/direction, and gpio{N}/value (with {N} replaced by the actual pin number) under the /sys/class/gpio directory. This approach is frequently employed in shell scripts. Starting from kernel version 4.8, support for libgpiod was introduced, and the legacy sysfs-based access method is gradually being deprecated.

Taking the SC-3568HA as an example, select 3 GPIO pins from the 40-pin header.

GPIO	Controller	Port number	Index number	Calculation result	PIN
GPIO4_D2	4	D	2	154 (32 x 4 + 8 x 3 + 2)	7
GPIO2_D7	2	D	7	95 (32 x 2 + 8 x 3 + 7)	18
GPIO0_C5	0	C	5	21 (32 x 0 + 8 x 2 + 5)	29

	#All the following operations require administrator privileges to be enabled (HarmonyOS has administrator privileges enabled by default).
    #Enable GPIO4_D2 pin
    echo 154 > /sys/class/gpio/export

    #Set the pin to input mode
    echo in > /sys/class/gpio/gpio154/direction
    #Read the pin value
    cat /sys/class/gpio/gpio154/value

    #Set the pin to output mode
    echo out > /sys/class/gpio/gpio154/direction
    #Set the pin to low level
    echo 0 > /sys/class/gpio/gpio154/value
    #Set the pin to high level
    echo 1 > /sys/class/gpio/gpio154/value

    #Reset pin
    echo 154 > /sys/class/gpio/unexport

4. Extend GPIO ports

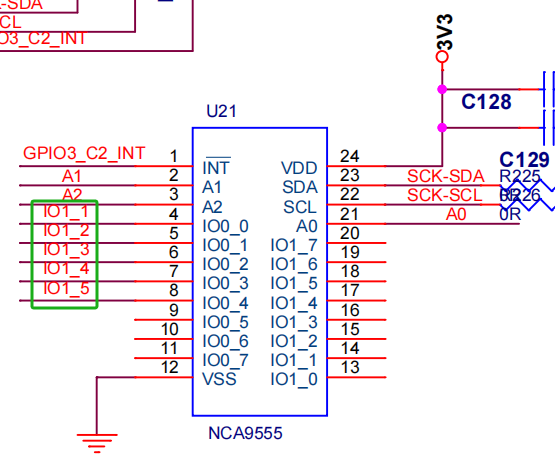

The SC-3568HA is equipped with the NCA9555 chip, a 24-pin CMOS device that provides 16-bit general-purpose parallel I2C-bus GPIO input/output expansion functionality.

4.1 Extend GPIO port pins

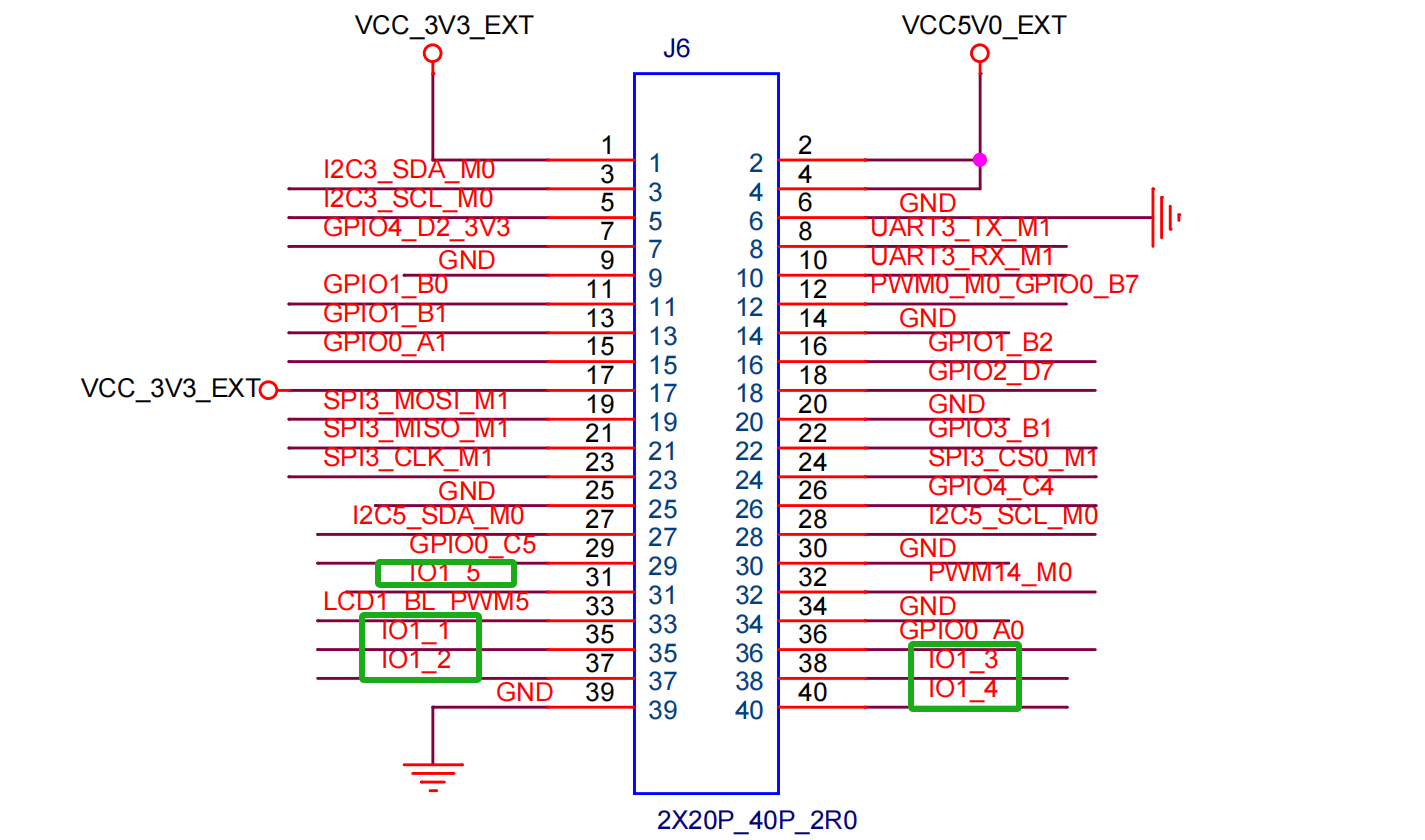

Currently, 5 IOs are routed out from this chip for use and connected to a 40-pin connector.

NCA9555	40PIN
IO1_1	35
IO1_2	37
IO1_3	38
IO1_4	40
IO1_5	31

4.2 Extend GPIO ports for use

This chip uses I2C communication, is mounted under I2C3, the driver files have been added, and the DTS configuration is as follows:

• /arch/arm64/boot/dts/rockchip/rk3568-toybrick-x0-linux.dts

	&i2c3{
	nca9555:nca9555@20{
		reg=<0x20>;
		compatible = "novosense,nca9555";
		status="okay";
		gpio-controller;
		#gpio-cells = <2>;
		};
	};

Tips

Using NCA9555's IO ports within the kernel is largely consistent with standard GPIO usage.

For example:

	//Using standard GPIO
    &vcc3v3_lcd0_n {
        gpio = <&gpio0 RK_PC7 GPIO_ACTIVE_HIGH>;
        enable-active-high;
    };

    //Using NCA9555's IO
    &vcc3v3_lcd1_n {
        gpio = <&nca9555 3 GPIO_ACTIVE_HIGH>;   //Corresponding to NCA9555 IO0_3
        enable-active-high;
    };

    &vcc3v3_lcd2_n {
        gpio = <&nca9555 10 GPIO_ACTIVE_HIGH>;   //Corresponding to NCA9555 IO1_2
        enable-active-high;
    };

---
