M.2

1. Introduction to M.2 interface

PCIe type of m.2 interface: PCIe Gen3 x 2 lane

Available length: 2280

Warning

This interface is only compatible with solid - state drives that follow the M2 NVMe protocol.

m.2 interface on SC-3568HA

2. Check NVMe hard drives

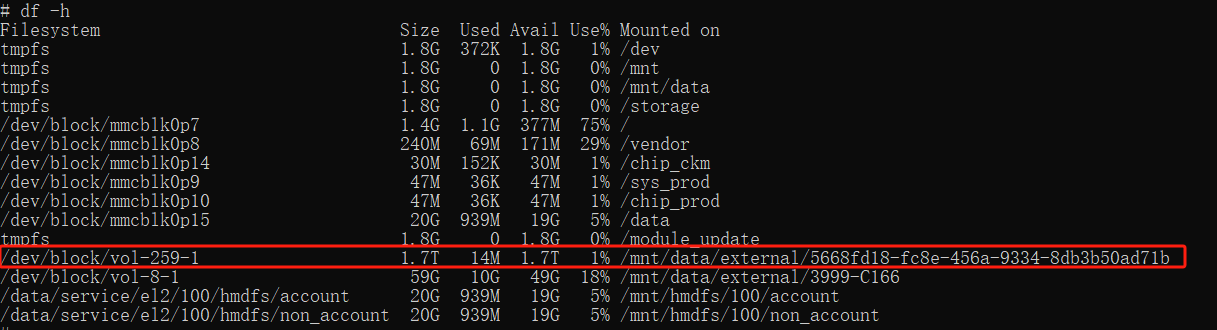

After connecting to nvme, start the board and enter the following command to check whether the hard disk is mounted:

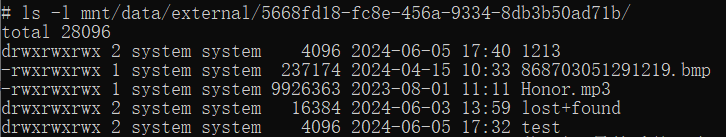

View hard drive contents

---
